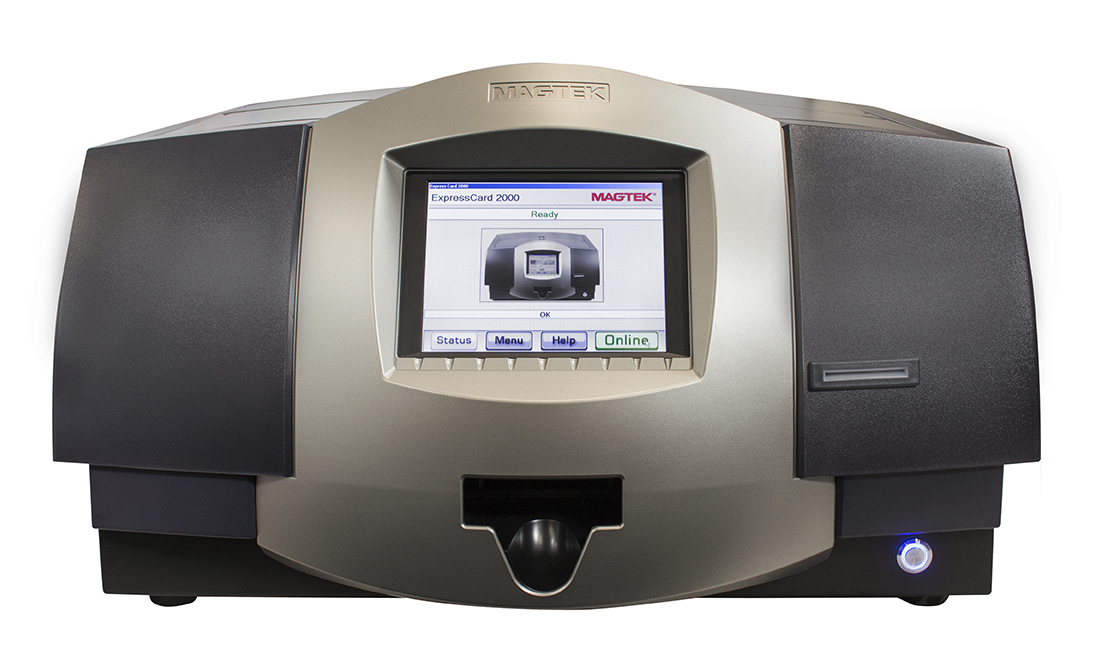

    ExpressCard 2000

    Create dynamic payment cards using this card personalization device that delivers instant issuance

    • features
    • specs
    • support
    • contact us

    Emboss, Encode, Personalize, Print, Tip - Impress

    • ExpressCard 2000 is scalable to meet your needs by delivering options, including an emboss-only device, a flat print-only device, or full personalization that includes embossing, indent printing, foil tipping, full-color image printing, and encoding of magstripes, or EMV contact/contactless smart cards, all in one compact card personalization device (CPD).
    ExpressCard 2000 Emboss, Encode, Personalize, Print, Tip - Impress

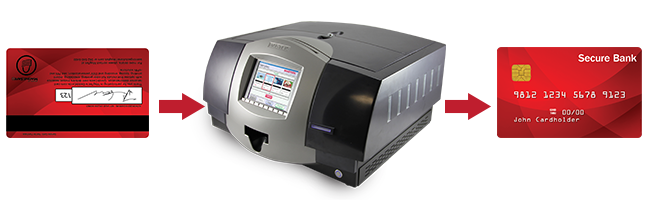

    Instant permanent card issuance

    Offer permanent new cards or emergency replacement cards instantly at the branch, eliminating card mailers. Instant card issuance and card personalization provides a higher level of service that existing customers will appreciate, and will attract potential customers. Create a lasting return on investment with increased card sales revenue, card activation, and inspired customer loyalty.

    ExpressCard 2000 Instant permanent card issuance

    Migration path to EMV

    ExpressCard 2000 is EMV ready. Migrate your customers to EMV chip cards with full personalization with ExpressCard 2000. Use QwickCards.com, MagTek’s easy-to-deploy, cloud-based card issuance service, develop custom solutions using ExpressCard 2000’s easy-to-use API.

    ExpressCard 2000 Migration path to EMV

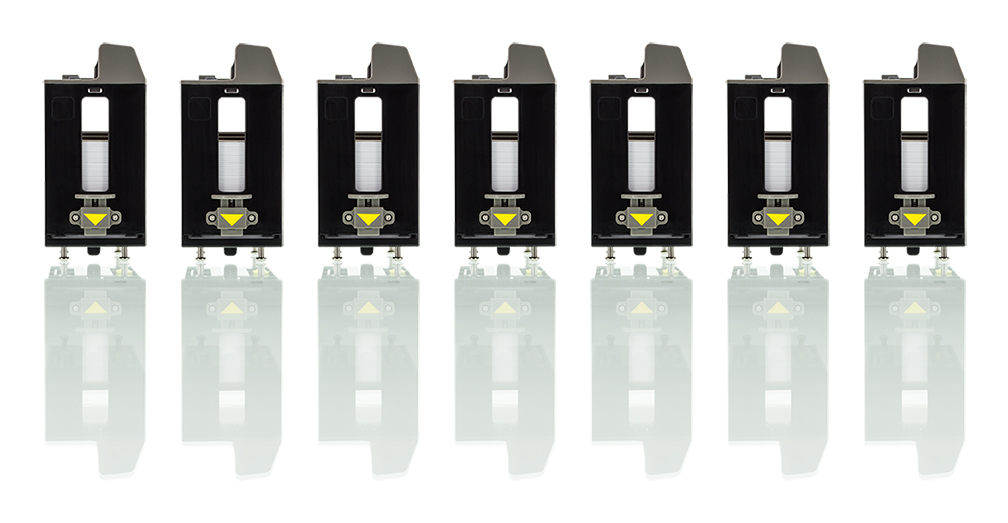

    7 Card hoppers and manual card feed

    • ExpressCard 2000 comes standard with seven card stock hoppers, a manual feed slot, an output hopper, and a secure card rejection bin. This gives you the ability to stock 7 different card stocks and manage inventory easier.
    ExpressCard 2000 7 Card hoppers and manual card feed

    Physical and logical security

    • ExpressCard 2000 leverages the MagneSafe® Security Architecture for card and device authentication.
    • It also has a key lock to ensure no unauthorized access inside the device.
    ExpressCard 2000 Physical and logical security

    Specifications

    • Download Brochure
    Card Hoppers
    • 7 automatic card hoppers (100 cards per) (locked)
    • manual feed hopper, 1 output hopper (card complete or reject)
    Encoding Capabilities
    • Magstripe: ANSI/ISO/AAMVA/CDL tracks 1, 2, and 3; HiCo/LoCo read/write per ISO 7810, 7811
    • EMV Smartcard: ISO 7816-1, -2, and -3; EMV smartcard contact module per ISO 7816, EMV L1
    Emboss/Indent Foil-tipped embossing: Rear and / or front indent
    Image printed embossing per ISO/IEC pubs: 7810, 7811-1 -6
    Printing
    • Up to 16.7 million colors/256 shades pp
    • TrueType fonts from on-board Windows drivers
    • CR-80 edge-to-edge (3.37”x 2.11”/85.5mmx 53.5mm); CR-79 (3.303”x2.051”/83.9mmx52.1mm)
    • Dye-sublimation resin thermal transfer
    • 300 dpi - 600 dpi (dbl run)
    • Windows™ 7, 32 & 64 bits
    General Info
    • CR-80 Card Stock: ANSI/ISO/AAMVA/CDL tracks 1, 2, and 3; HiCo/ LoCo read/write per ISO 7810, 7811
    • CR-80 edge-to-edge (3.37”x 2.11”/85.5mmx 53.5mm); CR-79 (3.303”x2.051”/83.9mmx52.1mm)
    • Ethernet 100 base-T (external) USB 2.0 (internal)
    • Power Input: 100 VAC to 240 VAC at 50 or 60 Hz (Auto-adjusting)
    • Recommended duty cycle for 50 cards per day/15,000 cards per year
    • MagnePrint reference capture module
    • 3/8” chassis anchor hole for desktop / counter mounting ring-shaped security anchor
    • LED status indicator and Windows OS
    • Device Weight: 88 lbs. (39.9 kg) Accessories: 3.8 lbs (1.7 kg)
    • Acoustics Sound level, idle: 64 dBSPL Sound level, embossing: 70 dBSPL

    Environmental

    Temperature
    Operating 65°F to 80° F (18°C to 27°C)
    Storage 30° F to 100° F (-1.1°C to 37.8°C)
    Humidity
    Operating 20% to 80% w/o condensation
    Storage 90% or below
    Operating Ventilation Free Air
    Agency Approval UL, CE Class B, FCC Class B
    Physical Security
    • Hard Mounting Points
    • Card Access Door
    • Locking cover
    • Locking service cover
    • Internal Reject hopper
    • Steel barrel lock and key
    Logical Security
    • Dual Control Passwords
    • Optional Card Swipe Device Certificate Authentication (1st)
    • MagnePrint® reference capture
    • XML over HTTPS 128 bit encryption
    • Ethernet only communications
    • Inventory management
    • Secure, electronic inventory audit capability
    Dimensions 24.7 in. x 26.8 in. x 15.1 in. (627 mm x 680 mm x 384 mm)
    Compatibility Compatible with MagTek’s cloud-based QwickCards.com software, in-branch IntelliCAT Software, as well as custom 3rd party software integration.
