    DynaFlex II SCR

    More than just tap, dip, and swipe, DynaFlex II SCR offers NFC Card Emulation, MIFARE and Mobile Wallet Protocols, and can amplify your payment application to include access and authentication is so many ways.

    DynaFlex II SCR
    • overview
    • features
    • specs
    • support
    • contact us

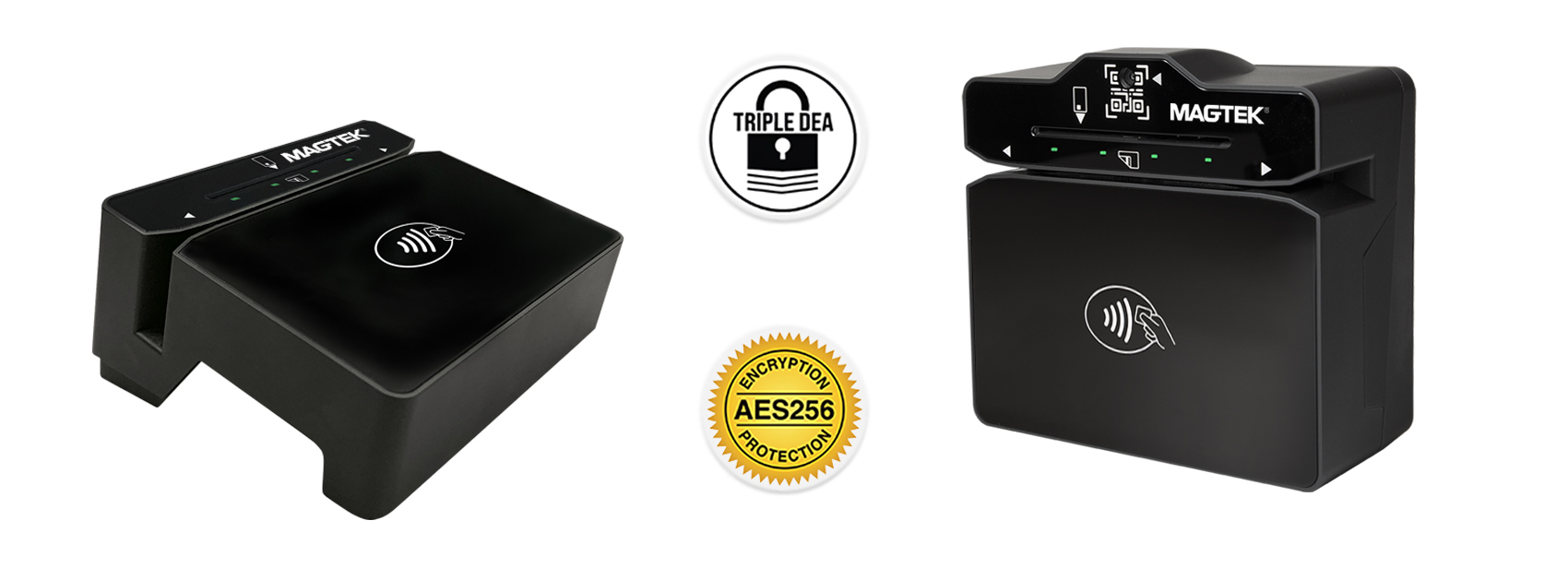

    Three in One and Then Some. Tap, Dip, Swipe, and Scan

    DynaFlex II SCR is ready to make your lines move faster and your customers happier. A secure cryptographic device, DynaFlex II SCR delivers magstripe, barcode, EMV® Contact Chip, EMV Contactless, and NFC Contactless acceptance.

    DynaFlex II SCR Three in One and Then Some. Tap, Dip, Swipe, and Scan

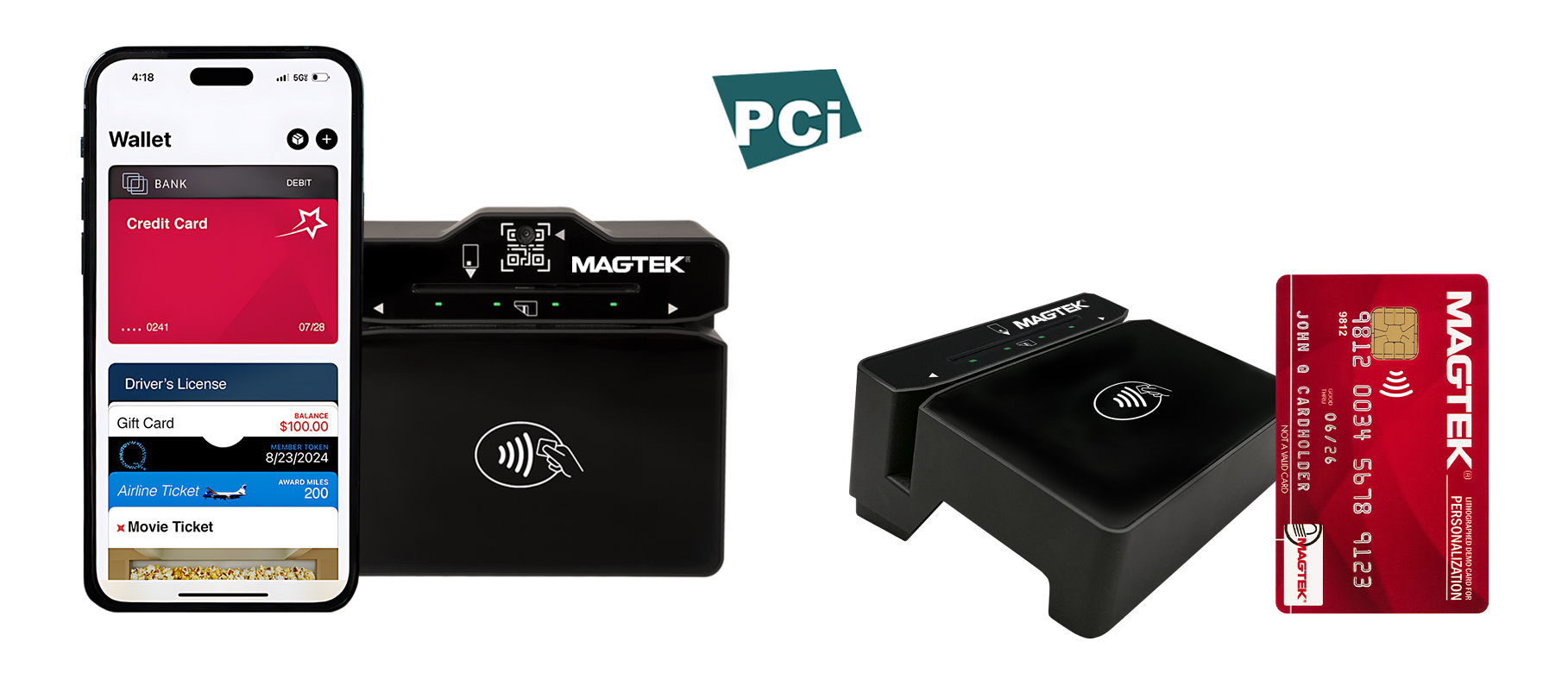

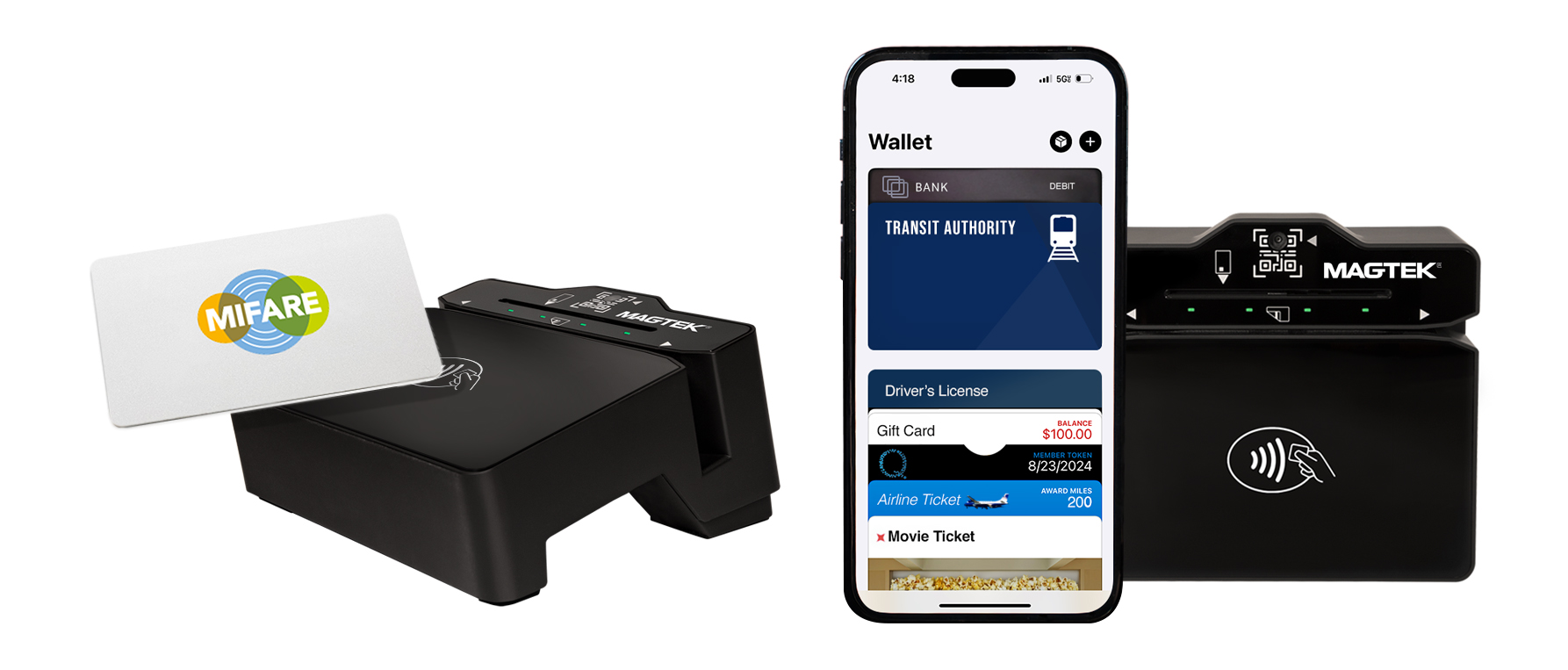

    More than Just Payments

    Same firmware, same device, ready for non-payment NFC data for access control, authentication, and loyalty with MIFARE®, MIFARE® DESFire®, and NTAG® technology. Planes, trains, and venues benefit from contactless acceptance. Additionally, DynaFlex II SCR is enabled to use Apple VAS and Google SmartTap protocols.

    DynaFlex II SCR More than Just Payments

    Add Barcode Reading

    Enable customers to do more with their phones. DynaFlex II SCR products designated as BCR, read QR Codes and other 1D/2D barcodes. This is ideal when you need to accept more than just payment data including promotions, loyalty and rewards programs, and subscriptions. Ready to read color encoded, logo-based, Linear Barcodes, UPC-A, UPC-E, Aztec, PDF417/ Data Matrix, and more.

    DynaFlex II SCR Add Barcode Reading

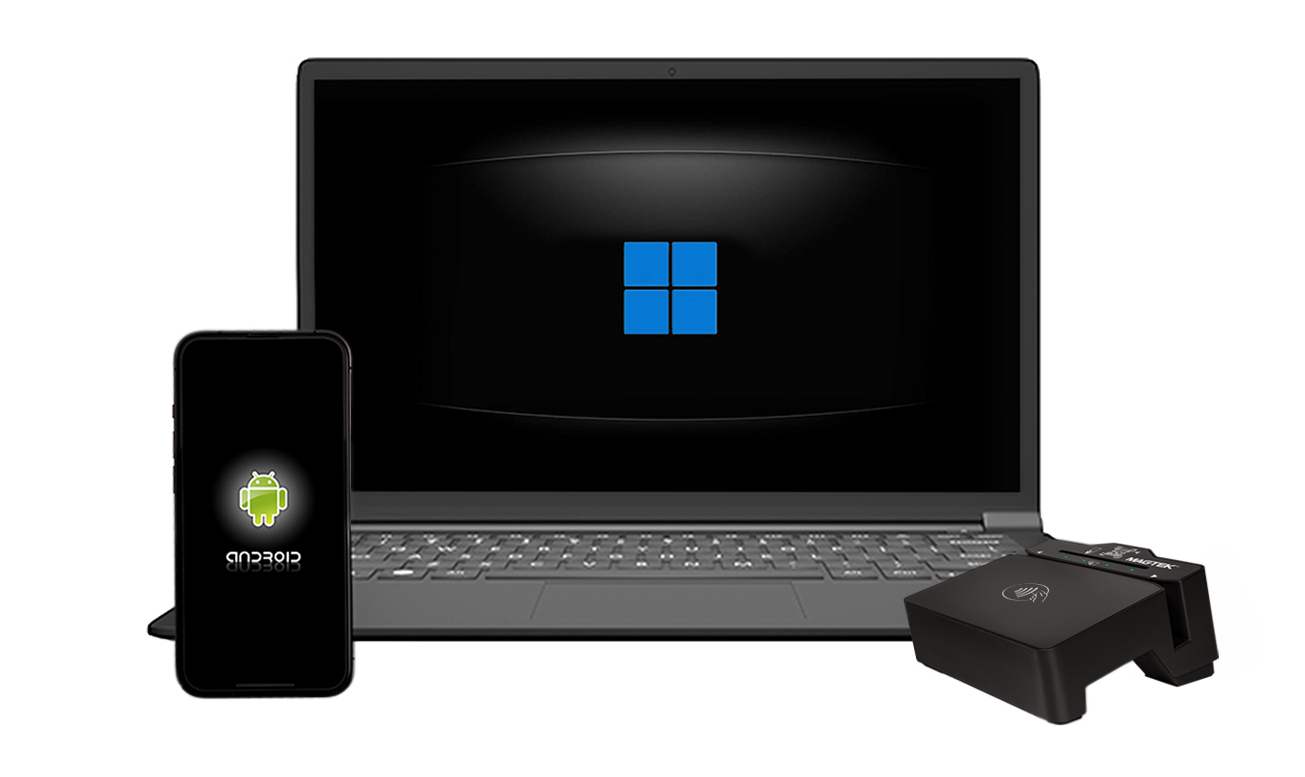

    Compatible with Leading Operating Systems

    DynaFlex II SCR products are compatible with Android and Windows handheld and countertop products for easier integration into leading payment and banking applications.

    DynaFlex II SCR Compatible with Leading Operating Systems

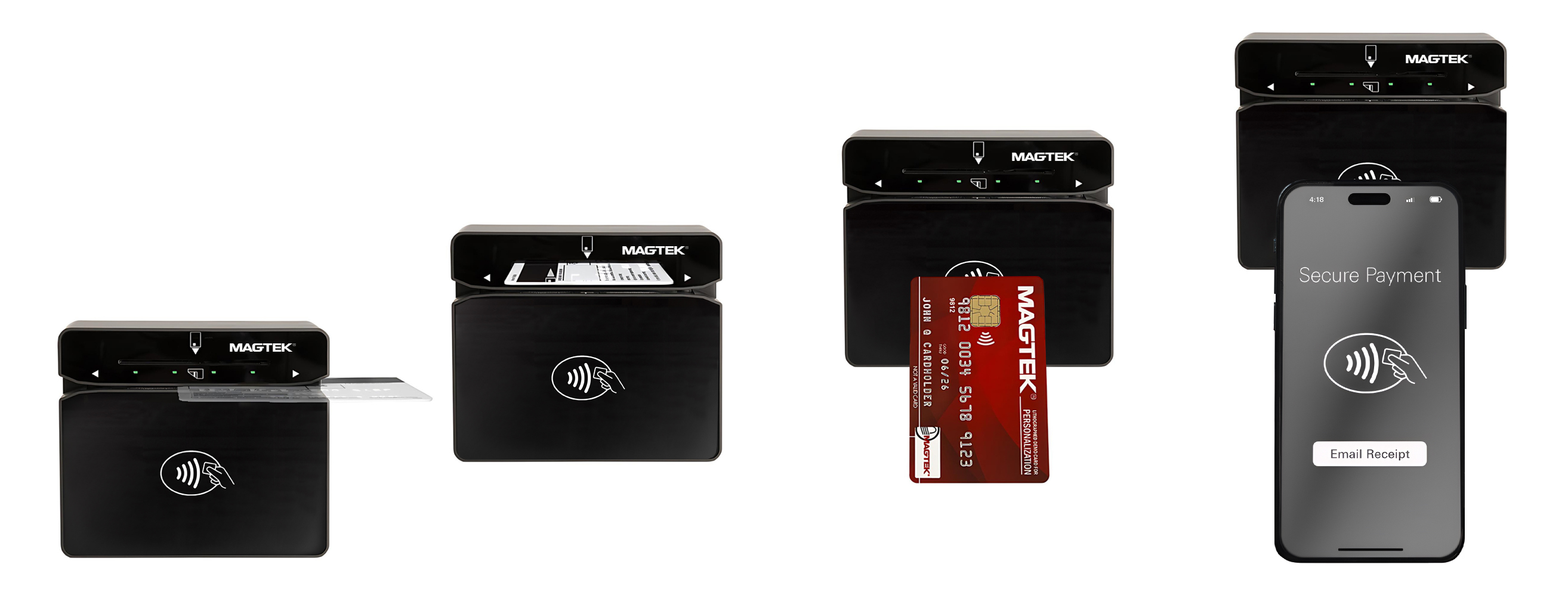

    Upfront Payments, Stable Form Factor, and Easy Connection

    Ergonomically engineered, all payment methods are designed on the front face of the reader. DynaFlex II SCR countertop products come with micro suction fitted feet, assuring the cardholder a stable swipe, tap, dip, keyed, or scanned experience. DynaFlex II SCR Kiosk products come with a flat mount with 4 threaded mounting holes for easier installation into kiosk and unattended solutions.

    DynaFlex II SCR Upfront Payments, Stable Form Factor, and Easy Connection

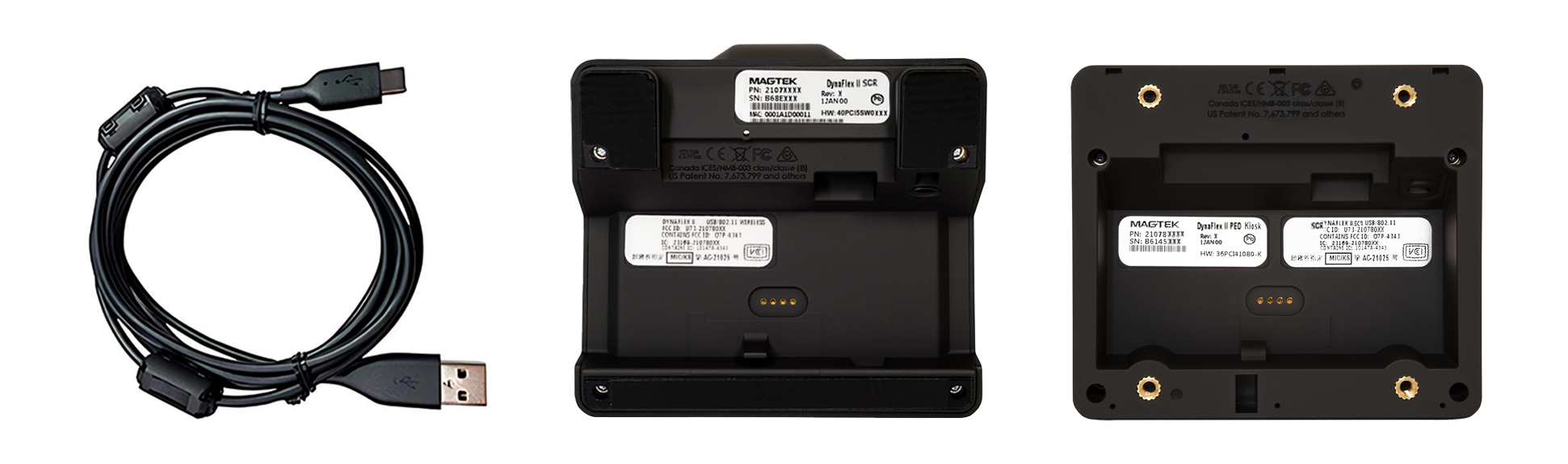

    Functional Form Factor and Simplified Cable Management

    DynaFlex II SCR products connect via USB, using one of the most common connection and power sources available. Route the cable in the desired direction - up, down, left, right, or into the mounting compartment of a kiosk. Cable management made easy.

    DynaFlex II SCR Functional Form Factor and Simplified Cable Management

    Security is Paramount - PCI PTS 6.x PED, SRED

    • DynaFlex II SCR products meet and exceed PCI security requirements and include MagTek Qwantum Security. The enclosure and associated electronics form a tamper resistant security module (TRSM) where attempts to penetrate or modify the unit cause all keys to be cleared and/or stop the unit from functioning.
    • Additionally, the devices can be programmatically set to use MagTek's Passcode Lock, restricting access to the device. A simple yet effective way to secure your devices when not in use; with manual entry, QR Code, and contactless workflows available.
    DynaFlex II SCR Security is Paramount - PCI PTS 6.x PED, SRED

    TDEA and AES Encryption Security

    DynaFlex II SCR products deliver industry best practices for data protection, supporting AES-256 encryption with CMAC Authentication and triple DEA encryption both with derived unique key per transaction (DUKPT) key management. Scanned, tapped, dipped, and swiped data are encrypted as soon as they are entered into the device.

    DynaFlex II SCR TDEA and AES Encryption Security

    MAGENSA WEB SERVICES | Payment Facilitation and Gateway

    DynaFlex II SCR products are Magensa Gateway L3 certified. Magensa Web Services provide a faster development cycle and save you money. Magensa Gateway and Tokenization Services provide more payment acceptance, more access controls, and an omni-commerce platform.

    DynaFlex II SCR MAGENSA WEB SERVICES | Payment Facilitation and Gateway

    Remote Management and MagCare Extended Warranty Programs

    MagTek stands behind its products and offers USA located support. Magensa remote services provide device management, firmware updates, key injection, and device configuration in centralized or distributed locations. Whether you need to update a single device or send firmware down to thousands of installed devices, our goal is to keep you up and running. And the Magensa MagCare program extends the warranty of your devices, for improved up-time.

    DynaFlex II SCR Remote Management and MagCare Extended Warranty Programs

    Ready for Retail Environments

    DynaFlex II SCR products deliver more to retail environments: with operating system and payment versatility, mounting flexibility, reduced PCI scope, enhanced customer experience, and faster transactions. Ready for retail merchants, restaurants, healthcare, hospitality, and anywhere you need to accept payments.

    DynaFlex II SCR Ready for Retail Environments

    Banking Environments Benefit from More Heads-Up Time

    Enable teller line, back office, and other in-branch settings, such as concierge-receptionists, to facilitate cardholder identification and other PIN entry transactions with the security, flexibility, and reliability in-branch visitors expect.

    DynaFlex II SCR Banking Environments Benefit from More Heads-Up Time

    360° view

    Specifications

    • Download SCR Brochure
    • Download PED Brochure

    Payment Methods

    Magnetic stripe reader

    Qwantum Security


    Three track, bidirectional, ISO 7810, ISO 7811, AAMVA, ISO Type B, Other; 6 ips to 60 ips

    EMV Contact Chip Reader

    EMVCo L1 and L2 Contact Reader


    ISO/IEC 7816-1, 2, 3, & 4 Identification Cards Integrated Circuits with Contacts
    EMV ICC Specifications for Payment Systems Version 4.3, L1 Contact and L2 Contac
    L1 and L2 ISO/IEC 7816
    CLICK HERE

    EMV Contactless Reader

    EMVCo L1 and L2 Contactless Reader


    EMV Contactless Level 1 Version 3.0
    D-PAS®, PayPass/MCL®, payWave®, Expresspay®;
    CLICK HERE

    NFC Contactless Reader / Mobile Wallet Acceptance

    ISO/IEC 18092, ISO/IEC 14443 (Type A/B)


    Mobile wallets including but not limited to
    Google® Pay, Samsung® Pay, Apple® Pay;
    Apple Vas and Google SmartTap Protocols;
    MIFARE®, MIFARE® DESFire®, NTAG®

    Barcode Reader (BCR devices only)

    BCR models only


    BARCODE MEDIA: Labels, paper, smartphone / computer displays;
    BARCODE TYPES: QR Codes, Linear Barcodes, UPC-A, UPC-E, Code 128, PDF417 / Data Matrix, etc., Aztec;
    See manual for details
    LED: Integrated white indicator LED


    Reliability and Operation

    Magnetic Stripe Card Reader Head Life

    1 Million

    ICC Read Head Life

    500,000 Card Insertions

    Operating System Compatibility

    USB Hosts: Android 4.4.2 and above, Linux, Windows 10

    Touchscreen display
    PED models only

    See DynaFlex II PED

    Status indicators

    4 LED, auditory beep


    General

    Connection Method

    USB-C (USB HID 2.0)

    Magensa Web services

    L3 Certified Gateway, Remote Services, Tokenization, Encryption, Authentication


    Electrical

    Charging

    NA

    Rechargeable Battery

    NA

    Current and Power

    Power through USB


    Security and Certifications

    Compliance

    FCC, CE, UL

    See Installation Manual for Complete Details

    PCI, SRED

    PCI PTS POI v6.x SCR, SRED

    Qwantum Security

    Encryption, Tokenization, Authentication, Dynamic Data

    Encryption

    TDEA/AES and DUKPT Key Management

    Tamper

    Responsive


    Mechanical

    Dimensions
    W x L x H


    DynaFlex II SCR
    4.0 x 3.5x 1.9 in.(101.6 x 88.9 x 48.3mm)
    DynaFlex II SCR Kiosk
    4.1 x 3.5 x 1.9 in.(103.3 x 90.0 x 48.3mm)
    DynaFlex II SCR BCR
    4.07 x 3.74 x 1.91 in (103.3 x 95.1 x 48.5mm)

    Mount/Stabilizer

    Micro suction feet
    Lanyard mount point



    CLICK HERE: DynaFlex Touchscreen 360°


    CLICK HERE: DynaFlex No BCR 360°

    Environmental

    Storage temp

    14°F to 140°F (-10°C to 60°C)

    Operating temp

    32°F to 113°F (0°C to 45°C)

    Operating & Storage humidity non-condensing

    Up to 90% relative humidity

    Ingress Protection Meets

    Splash Resistance
