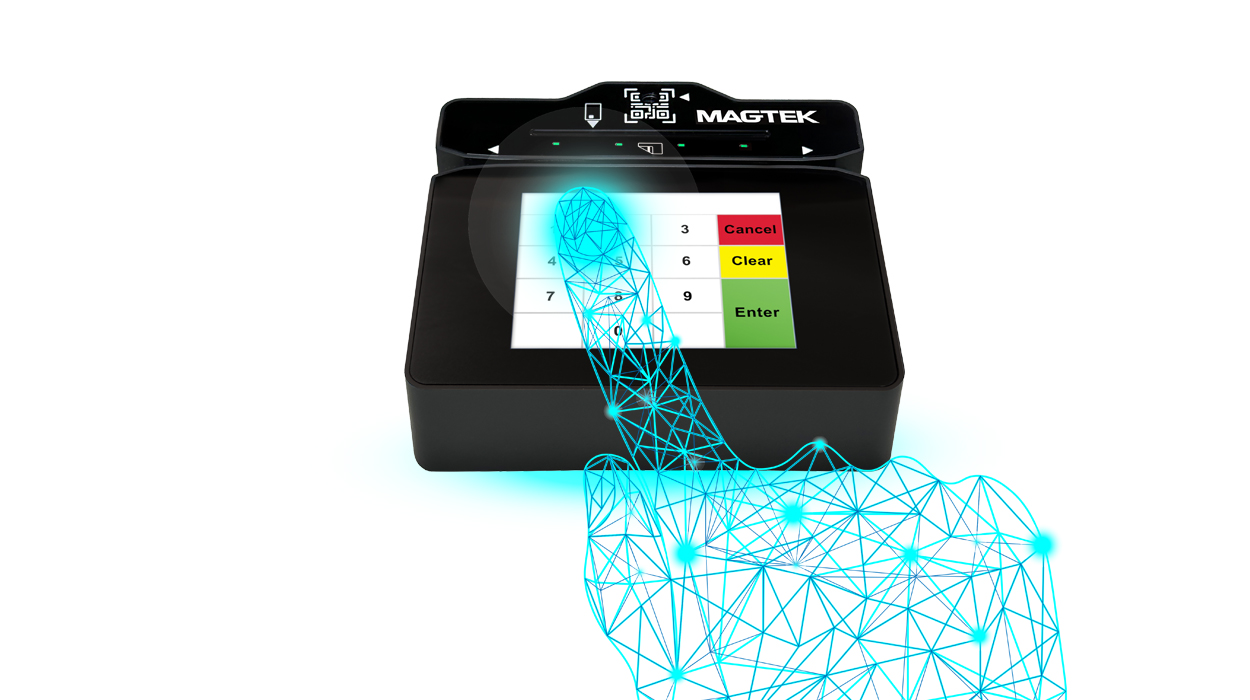

    DynaFlex II PED

    More than just tap, dip, and swipe, DynaFlex II PED offers MIFARE, Mobile Wallet Protocols, and Barcode scanning and can amplify your application to include payments, access, and authentication.

    DynaFlex II PED
    • overview
    • features
    • specs
    • support
    • contact us

    Integrated EMV Card Reader, NFC reading, Barcode Reading, Magnetic Stripe Card Reading, and Touchscreen Payment and Secure Data Acceptance in One Small Form Factor

    • DynaFlex II PED is ready to make your lines move faster and your customers happier. A secure cryptographic device, DynaFlex II PED delivers a touchscreen for secure entry of sensitive data, signature capture, manual entry of card data and PIN entry for banking and point-of-sale applications, accepts magstripe, barcode, EMV® Contact Chip, EMV Contactless, and NFC Contactless payments.
    DynaFlex II PED Integrated EMV Card Reader, NFC reading, Barcode Reading, Magnetic Stripe Card Reading, and Touchscreen Payme

    More than Just Payments

    Same firmware, same device, ready for non-payment data and using NFC technology for access control, authentication, and loyalty with MIFARE®, MIFARE® DESFire®, and NTAG®. Letting customers enter sensitive info like Birth Dates or Social Security Numbers on the payment device improves their experience, clears counter clutter, and reduces risk for the merchant.

    DynaFlex II PED More than Just Payments

    Mobile Wallet Protocol Acceptance

    Enable acceptance of tickets, loyalty rewards, and so much more through Apple® VAS and Google SmartTap®.

    DynaFlex II PED Mobile Wallet Protocol Acceptance

    Add Barcode Reading for Touch-Free Transactions

    DynaFlex II PED products designated as BCR, read QR Codes and other 1D/2D barcodes. This is ideal when you need to accept more than just payment data and include promotions, accept loyalty and rewards programs, access subscriptions, and so much more. Ready to read QR Code (color encoded, logo-based), Linear Barcodes, UPC-A, UPC-E, Aztec, PDF417/ Data Matrix, and more.

    DynaFlex II PED Add Barcode Reading for Touch-Free Transactions

    Compatible with Android, iOS, and Windows Operating Systems

    • DynaFlex II PED products are compatible with Android, Windows, and iOS/iPadOS (iOS/iPadOS requires WLAN connectivity) handheld and countertop products for easier integration into leading payment and banking applications.
    DynaFlex II PED Compatible with Android, iOS, and Windows Operating Systems

    Upfront Payments, Stable Form Factor, and Easy Connection

    Ergonomically engineered, all transactions are designed on the front face of the reader. DynaFlex II PED countertop products come with micro suction fitted feet, assuring the cardholder a stable swipe, tap, dip, keyed, or scanned experience. DynaFlex II PED Kiosk products come with a flat mount for easier installation into kiosk and unattended solutions.

    DynaFlex II PED Upfront Payments, Stable Form Factor, and Easy Connection

    Security is Paramount - PCI PTS 6.x PED, SRED

    • DynaFlex II PED products meet and exceed PCI security requirements and include Qwantum Security. The enclosure and associated electronics form a tamper resistant security module (TRSM) where attempts to penetrate or modify the unit cause all keys to be cleared and/or stop the unit from functioning.
    • Additionally, the devices can be programmatically set to use MagTek's Passcode Lock, restricting access to the device. A simple yet effective way to secure your devices when not in use; with manual entry, QR Code, and contactless workflows available.
    DynaFlex II PED Security is Paramount - PCI PTS 6.x PED, SRED

    TDEA and AES Encryption Security

    • DynaFlex II PED products deliver industry best practices for data protection, supporting AES-256 encryption with CMAC Authentication and triple DEA encryption both with derived unique key per transaction (DUKPT) key management. Scanned, tapped, dipped, swiped, and manually entered data, including PIN data, are encrypted as soon as they are entered into the device. Signatures entered on the touchscreen can be cryptographically bound to a specific document and its associated metadata, ensuring that the final record is tamper-evident and authentically linked to a transaction.
    DynaFlex II PED TDEA and AES Encryption Security

    Functional Form Factor and Simplified Cable Management

    DynaFlex II PED offers a countertop and kiosk form factor. These products connect via USB, and select devices additionally offer connection via WLAN for a wireless and mobile solution. The kiosk devices are built with a flat back with 4 threaded mounting holes for easier installation into unattended and self-service kiosks. Route the cable in the desired direction, up, down, left, right, or into the mounting compartment of a kiosk. Cable management made easy.

    DynaFlex II PED Functional Form Factor and Simplified Cable Management

    MAGENSA SERVICES | Payment Facilitation and Gateway

    Magensa Device Integration Tools make development easier and more secure. MagTek software developer kits have no royalty or maintenance fees and are free to re-distribute with your application. SDKs come with demo apps, sample code, and complete programmer’s manuals. Magensa MagneFlex browser and middleware drive the hardware, interface with the POS app, and enable faster development, and Wedget App provides simplified card data acquisition via a keyboard wedge interface.

    DynaFlex II PED MAGENSA SERVICES | Payment Facilitation and Gateway

    Remote Management and MagCare Extended Warranty Programs

    MagTek stands behind its products and offers USA located support. Magensa remote services provide device management, firmware updates, key injection, and device configuration in centralized or distributed locations. Whether you need to update a single device or send firmware down to thousands of installed devices, our goal is to keep you up and running. And the MagCare program that extends the warranty of your devices, for improved up-time.

    DynaFlex II PED Remote Management and MagCare Extended Warranty Programs

    DynaFlex II PED Delivers Versatility and Scalability to Your retail Environment

    DynaFlex II PED with MQTT delivers secure, real-time, and scalable messaging, enabling your applications to respond instantly to payments, access, and IoT events. Combined with versatile OS and payment support, flexible mounting, reduced PCI scope, and faster transactions, it enhances the customer experience across retail, restaurants, healthcare, and hospitality. One device, multiple possibilities—streamlined, connected, and ready for any environment where payments or access matter.

    DynaFlex II PED DynaFlex II PED Delivers Versatility and Scalability to Your retail Environment

    Banking Environments Can Connect the Consumer Reception, Service Desk, and Back Office and use with QwickCards and QwickPIN Magensa Services

    Enable teller line, back office, and other in-branch settings, such as concierge-receptionists, to facilitate cardholder identification; and other PIN management transactions with QwickCards and QwickPIN Magensa Services delivering the security, flexibility, and reliability in-branch visitors expect.

    DynaFlex II PED Banking Environments Can Connect the Consumer Reception, Service Desk, and Back Office and use with QwickCard

    OEM Payments and Access Control in One Device

    • Original equipment manufacturers will benefit from the small footprint that does so much. Scan QR Codes, accept Mifare transactions, and pay - in one device.
    DynaFlex II PED OEM Payments and Access Control in One Device

    360° view

    Specifications

    • Download PED Brochure
    • Download SCR Brochure

    Payment Methods

    Magnetic stripe reader

    Qwantum Security


    Three track, bidirectional, ISO 7810, ISO 7811, AAMVA, ISO Type B, Other
    6 ips to 60 ips

    EMV Contact Chip Reader

    EMVCo L1 and L2 Contact Reader


    ISO/IEC 7816-1, 2, 3, & 4 Identification Cards Integrated Circuits with Contacts
    EMV ICC Specifications for Payment Systems Version 4.3, L1 Contact and L2 Contact
    L1 and L2 ISO/IEC 7816
    CLICK HERE

    EMV Contactless Reader

    EMVCo L1 and L2 Contactless Reader


    EMV Contactless Level 1 Version 3.0
    D-PAS®, PayPass/MCL®, payWave®, Expresspay®;
    CLICK HERE

    NFC Contactless Reader / Mobile Wallet Acceptance

    ISO/IEC 18092, ISO/IEC 14443 (Type A/B)


    Mobile wallets including but not limited to
    Google® Pay, Samsung® Pay, Apple® Pay;
    Apple Vas and Google SmartTap Protocols;
    MIFARE®, MIFARE® DESFire®, NTAG®

    Mobility and Credential Technologies

    Ask a representative for details


    NTAG, MIFARE DESFire, MIFARE Ultralight, APDU, (coming soon ECP2, mDoc)

    Barcode Reader (BCR devices only)

    BCR models only


    BARCODE MEDIA: Labels, paper, smartphone / computer displays;
    BARCODE TYPES: QR Codes, Linear Barcodes, UPC-A, UPC-E, Code 128, PDF417 / Data Matrix, etc., Aztec;
    See manual for details
    LED: Integrated white indicator LED


    Reliability and Operation

    Magnetic Stripe Card Reader Head Life

    1 Million

    ICC Read Head Life

    500,000 Card Insertions

    Operating System Compatibility

    USB Hosts: Android, Linux, Windows
    WLAN Hosts: Android, Linux, Windows, iOS/iPadOS

    Touchscreen Display

    Measurements and Capabilities


    2.3 x 1.70 in.(57.60x43.20mm)
    320 x 240 (RGB) Dots
    Manual Entry
    PIN Entry
    Signature Capture

    Status indicators

    4 LED, auditory beep


    General

    Connection Method

    USB-C, WLAN, QwantiFi (MQTT)

    Communication Tools

    Web HID

    Additional Communication Formats

    APDU

    Magensa Web Services

    L3 Certified Gateway, Remote Services, Tokenization, Encryption, Authentication


    Electrical

    Voltage Requirements

    5 VDC from USB

    Battery

    Lithium Polymer rechargeable (WLAN)

    Current and Power

    Power through USB


    Security and Certifications

    Compliance

    FCC, CE, UL, UKCA.

    See Installation Manual for Complete Details

    PCI, SRED

    PCI PTS POI 6.x PED

    Qwantum Security

    Encryption, Tokenization, Authentication, Dynamic Data

    Encryption

    TDEA/AES with DUKPT Key Management

    Tamper

    Tamper Resistant Security Module (TRSM)


    Mechanical

    Dimensions
    W x L x H


    DynaFlex II PED
    4.0 x 3.5x 1.9 in.(101.6 x 88.9 x 48.3mm)
    DynaFlex II PED Kiosk
    4.1 x 3.5 x 1.9 in.(103.3 x 90.0 x 48.3mm)
    DynaFlex II PED BCR
    4.07 x 3.74 x 1.91 in (103.3 x 95.1 x 48.5mm)

    Mount/Stabilizer

    Countertop: Micro suction feet
    Lanyard mount point

    CLICK HERE: DynaFlex II PED no BCR 360°


    CLICK HERE: DynaFlex II SCR No BCR 360°


    Environmental

    Storage temp

    14°F to 140°F (-10°C to 60°C)

    Operating temp

    32°F to 113°F (0°C to 45°C)

    Operating & Storage humidity non-condensing

    Up to 90% relative humidity

    Ingress Protection Meets

    Splash Resistance
