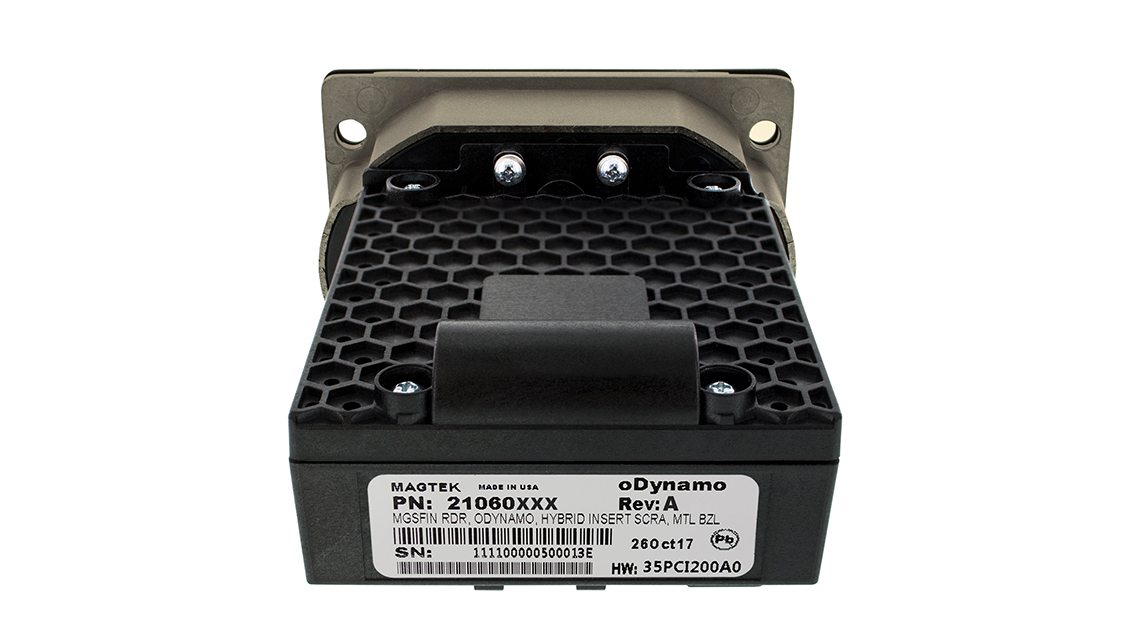

oDynamo

MagneSafe® Hybrid Insertion Reader, OEM Payment Hardware for Magnetic Stripe and EMV Chip Cards

  • features
  • specs
  • support
  • contact us

C-Store and Gas Station - EMV Upgrade Kit

  • MagTek's OEM Solutions team is here to you help you meet the EMV compliance deadline and assist in other self-service kiosks and payment systems for your convenience store customer's. Couple oDynamo with the DynaWave module for added contactless acceptance.

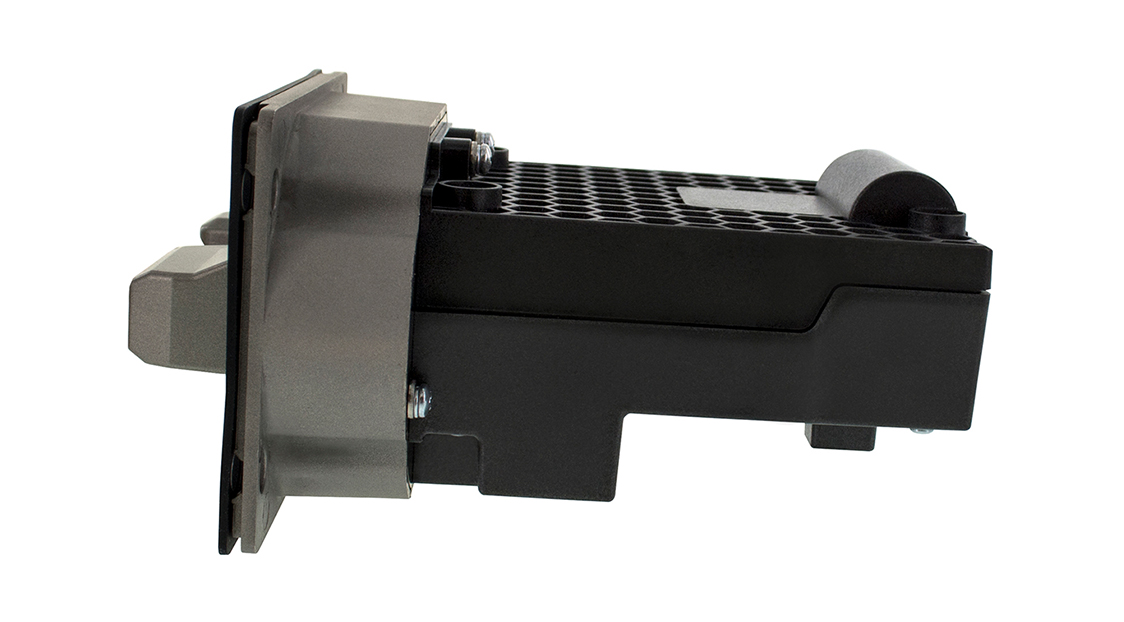

Rugged OEM Insertion Reader Ready for all Environments

  • The sealed chassis is designed to be impervious to liquid and other harsh environmental elements, making it an ideal solution for gas pumps, ATMs, and vending machines. Ultimate system design flexibility makes it ideal for a variety of unattended payment terminals.

Insertion Card Reader Engineered for Reliability

oDynamo withstands a wide range of operational conditions and supports multiple communication protocols. Two onboard USB ports allow for connecting to a USB host, as well as a variety of devices and associated displays.

Keep business moving

From rental bike kiosks, to train station ticketing, and petrol payments, oDynamo is a robust reader ready to keep your customers on the move.

Insertion EMV Chip and Magstripe Built for Fast and Reliable Reading

  • oDynamo is a secure insertion card reader that is built to be durable and flexible. oDynamo allows for fast, reliable, and secure reading of magnetic stripe and chip card data from cards that meet the ISO 7810, 7811, and 7816 specifications.
  • Download Brochure

Payment methods

Magnetic stripe reader (SCRA)
Triple Track (TK1/2/3);
Bidirectional read ISO 7810, 7811; AAMVA driver licenses
YES 6 ips to 60 ips
EMV chip contact
EMVCo L1 and L2 ISO/IEC 7816
YES
EMV contactless
EMVCo L1 and L2, EMV Level 1 /C-2/C-3/C-4/C-5 ISO/IEC 18092, ISO/IEC 14443 (Type A/B)

NA
Contactless capability can be added by way of DynaWave.
NFC contactless / mobile wallets
ISO/IEC 18092, ISO/IEC 14443 | (Type A, Type B) C-1/ C-6/C-7 D-PAS®, PayPass™, payWave®, ExpressPay®, Apple Pay®

NA
Contactless capability can be added by way of DynaWave.

Reliability and Operation

MSR / SCRA insertions 500K
EMV insertions 500K
Memory Non-volatile
Status indicators General Status LED (Red/Green/Amber)
Device Compatibility RS-232 host devices

General

Connection Method
  • RS-232 Serial
  • Ethernet
  • USB Device
  • USB Host
Wireless
(Frequency 2.4 MHz)
NA
Interface
  • USB
  • Ethernet
  • RS-232
  • TIA232F serial interface specification
Display NA
Secure Key Pad External USB PCI PED connection
Web services Magensa Services

Electrical

Battery NA
Power
  • Power input: 1A at 24VDC on RS-232 port
  • Power output: 500mA at 5VDC USB port
  • Multiple grounding options

Security and Certifications

PCI PTS 5.X, SRED
For Use In PCI-DSS And PCI P2PE Environments
Click here.
Compliance
(FCC, CE, UL)
  • YES & EMV L1 and L2 certified
  • Optional PIN Pad is PCI PTS 5.x Certified
  • Secure Card Reader (SCR) with SRED
Data protection 3DES encryption;
DUKPT key management
PCI SRED
Unique, non-changeable device serial no.
YES
Tamper Evident, resistant and responsive

Mechanical

Dimensions
L x W x H or L x W x D
5.52 x 3.94 x 2.80 in.
(140.2 x 100.1 x 71.1 mm)
Weight 1.6 lbs. (0.73 kg)
Mount/Stabilizer
  • Solution-specific enclosure using nuts on threaded studs/screws.
  • Horizontal or vertical card insertion slot orientation.
  • Compatible with EVA EPS 1.1 for UPOS hole patterns.
Vibration resistance Resists 5Hz to 50Hz sinusoidal vibrations at 10 m/s2 on all axes
ESD protection 8 kV
Vapor Resistance
  • Test Gasoline-96 RON (Reference Gasoline)
  • Reference Fuel C
  • Diesel 2007
  • Emission Certification Fuel (Reference Diesel)
  • E10
  • E25
  • E85
  • M15
  • Road-Use Diesel
  • Road Use Unleaded

Environmental

Operating temp Operating temp -22°F to 158°F (-30°C to 70°C)
Operating humidity non-condensing 10% to 90%
Storage temp -40°F to 158°F (-40°C to 70°C)
Storage humidity non-condensing 10% to 90%
