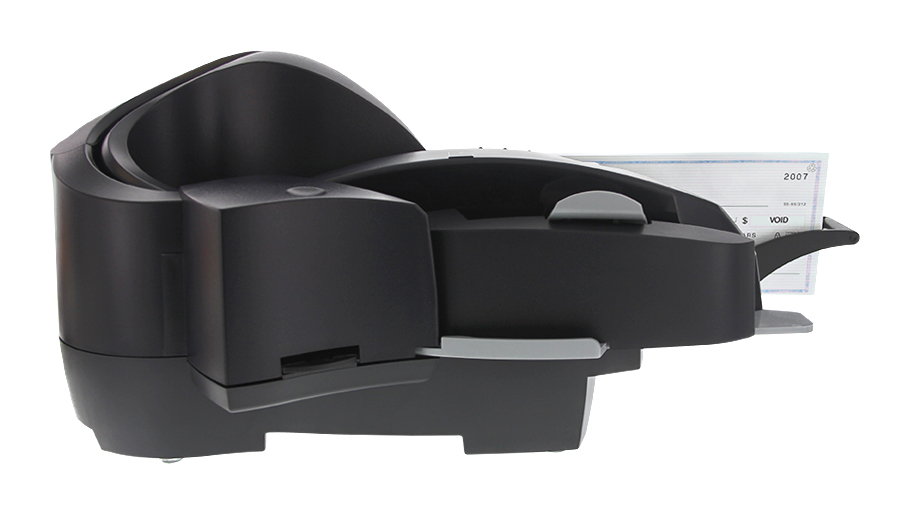

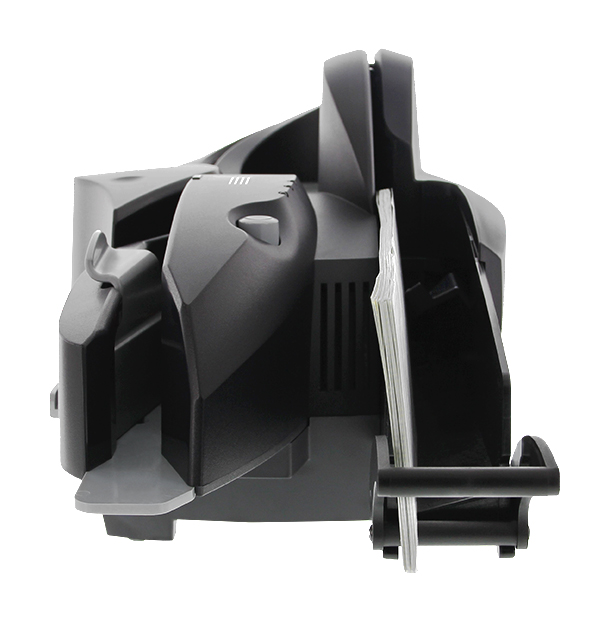

Excella

USB and Ethernet Check Reading and Imaging Device

  • features
  • specs
  • support
  • contact us

Focused on checks for efficiency

With a small footprint and striking modern design, Excella is an auto-feed check reader

Capacity of up to 70 documents

Captures both the front and back image of checks in a single pass at 45+ DPM. The automatic feeder has a capacity of up to 70 documents to support BOC, Check 21 and remote deposit capture.

Dual sided scanner, back franking

The Excella reads both E13B and CMC7 MICR fonts and features a programmable endorsement message.

Scans at a resolution that works

Captures check images at a 200 dpi. Offers CCITT G4 or JPEG image compression to optimize your applications’ storage use.

Standard Configurations

Description P/N
USB/Ethernet 22310102

General Information

Interface USB 2.0 (USB 1.1 compatible)
Ethernet 100Base-T
Interfaces and API compatible with Excella STX
Color Black
Dimensions Height: 7.0 in
Width: 7.5 in
Length: 13.25 in
Weight 3.59 lbs.

Specifications

Reference ANSI X9.100-120 (formerly known as X9.27)
ANSI X9-100-160-1 & 2 (formerly known as X9.13)
Power Input 24 VDC 2.5 Amps
Document Size 4”x 8.5” maximum
Check Scanning Dual-sided
Image Resolution 200 dpi (scaling to 100 dpi); Black/white and grayscale images
Image Compression CCITT G4 or JPEG
Printer Back only
Printer Ink Cartridge HP C6602A
Check Feed Auto-feeder (up to 70 checks) and single-feed input
MICR Fonts Supported E13-B and CMC-7
