    ExpressCard 500p

    Flat Printing Instant Issue and Card Personalization Device

    • features
    • specs
    • support
    • contact us

    Encode, print, personalize

    • ExpressCard 500p delivers sophisticated, premium-quality, edge-to-edge card production with dual-sided color printing, state-of-the-art magstripe encoding, contact and contactless smart card personalization.
    • The advanced design is rugged and built following strict engineering assurance guidelines. Using advanced encoding technologies for magstripe encoding, and optional contact/contactless EMV smart card personalization, this desktop printer is an excellent solution for issuing personalized cards, from the most simple to the most secure.
    ExpressCard 500p Encode, print, personalize

    Flat card instant card issuance

    Customers no longer need to wait to get their cards in the mail. Increase card activation and usage while improving customer satisfaction and security with instant issuance. Instant issuance enhances customer interactions and increases cross-selling opportunities. In-branch card issuance eliminates the expense of replacement card mailers and reduces the risk of card fraud. Differentiate your institution in the market and offer service that exceeds customer expectations with cost-effective solutions.

    ExpressCard 500p Flat card instant card issuance

    Migration path to EMV

    You will appreciate the printers’ flexibility, security and print quality. With the feature-rich solutions offered by ExpressCard 500p, financial institutions will be able to meet current market needs and also support new card issuing trends, including EMV smartcards contact or contactless chip encoders, flat cards and photo cards.

    ExpressCard 500p Migration path to EMV

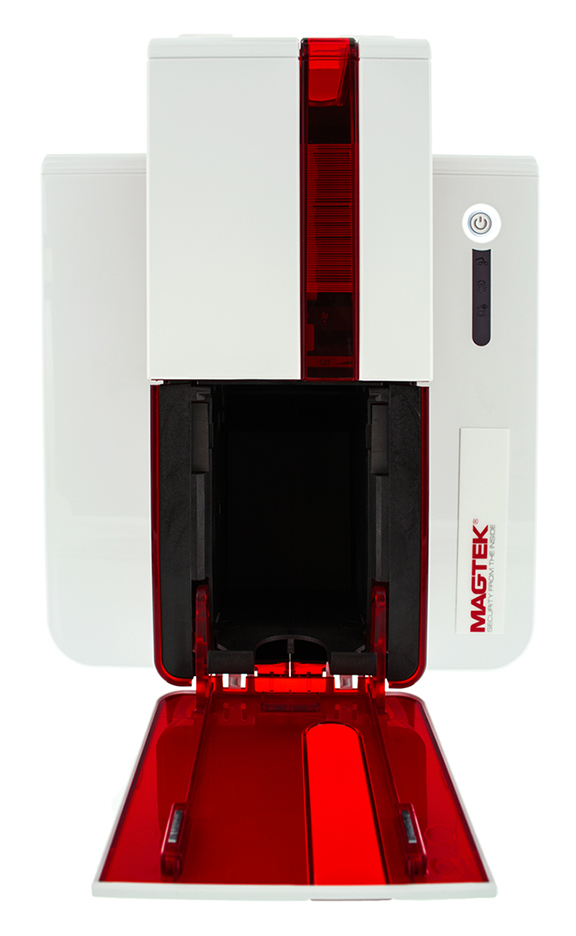

    1 card hopper and manual feed

    ExpressCard 500p automatic feeder and output hopper both have a 100 card capacity, while the manual feeder makes it easy to create card-by-card printing. Personalization for a variety of card applications including ATM, Gift, Debit and credit cards.

    ExpressCard 500p 1 card hopper and manual feed

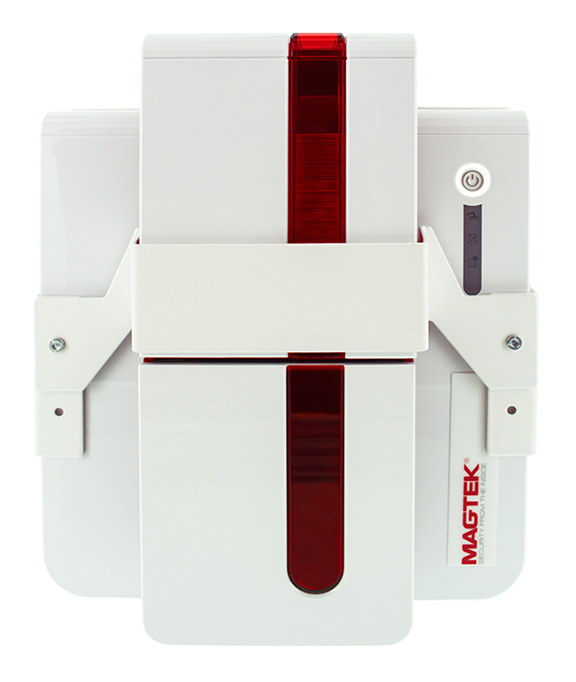

    Physical security

    ExpressCard 500p features a locking card hopper designed to secure the card stock and meet Visa and MasterCard’s compliance requirements for instantly issuing branded cards. The Kensington Lock physically secures the device and keeps the CPD locked down where you want it and meets VISA’s Hardware Standards on securing the device (Section 3 of VISA’s Global Instant Card Personalization Issuance Security Standards) so the card issuer can confidently focus on their business.

    ExpressCard 500p Physical security

    Specifications

    • Download Banking Brochure
    General technical features
    • Color printing module
    • 300 dpi print head (11.8 dots/mm)
    • USB connection
    • 16 MB RAM allowing two color cards (front and back) to be stored
    • Card turnover point for double-sided printing
    • Detachable 100 card input feeder (0.76 mm or 30 mil)
    • 100 card output hopper (0.76 mm – 30 mil) 1 button and 4 LED control panel
    • Ocean Blue color
    Printing modes
    • Color sublimation and monochrome thermal transfer
    • Advanced color management system for top-quality photographs
    • Edge-to-edge printing
    • Double-sided printing
    • Integrated ribbon saving for monochrome printing
    Performance Is approximate and depends on card design and print settings
    • Color 1 side (YMCKO), 150 cards/hour
    • Color 2 sides (YMCK0-K), 125 cards/hour
    • Monochrome 1 side, up to 1,000 cards/hour
    • Monochrome 2 sides, up to 350 cards/hour
    Platforms supported
    • Windows™ XP, 2003, Vista and 7, 32 & 64 bits
    Software supplied QwickCards.com Controller
    Ribbon types
    • 2-panel KO monochrome black ribbon – 500 cards/roll
    • 5-panel YMCKO color ribbon – 200 cards/roll
    • 6-panel YMCKO-K color ribbon – 200 cards/roll
    • Half-panel YMCKO color ribbon – 400 cards/roll
    • Monochrome ribbons – up to 1,000 cards/roll: available in black, gold and silver
    Options Encoding options (can be combined)
    • ISO 7811 HiCo/LoCo or JIS2 magnetic strip encoder
    • Smartcard contact station - ISO 7816-2
    • Smartcard encoder and contact station – PC/SC, EMV 2000-1
    • Contactless card encoder - ISO 14443A, B, ISO 15693, Mifare, DesFire, HID iCLASS
    • Other specific encoders on request
    • 100-card additional feeder
    • Manual card input feeder
    Warranty One year warranty with optional Hot Swap
    Power supply Power supply unit: 110-230 volts AC, 1.8 A, 60-50 Hertz - Printer: 24 volts DC, 3 A
    Environment
    • Min/max operating temperature: 15° / 30°C (59° / 86° F)
    • Humidity: 20% to 65% without condensation
    • Min/max storage temperature: -5° / +70°C (23° / 158° F)
    • Storage humidity: from 20% to 70% without condensation
