ExpressCard 3000

Instant issuance for magstripe and EMV dual interface contact and contactless card chip sets.

The Next Generation of ExpressCard is here

  • ExpressCard 3000 is easy to use, highly reliable, and uses the latest in RFID technology to manage consumables. This powerful combination enhances operation maximizes up time.

Improved print capability

ExpressCard 3000 delivers excellent print capability. Its consumables use RFID technology so you know when consumables have been replaced and updated.

Reliability and Durability

ExpressCard 3000 is engineered to deliver reliability, durability, and beautiful looking cards. The exit transport, card transport, and hoppers have been enhanced for even better print success.

Windows Operating System

ExpressCard 3000 ensures the latest enhancements and security settings are ready to be leveraged.

Increase Card Activation

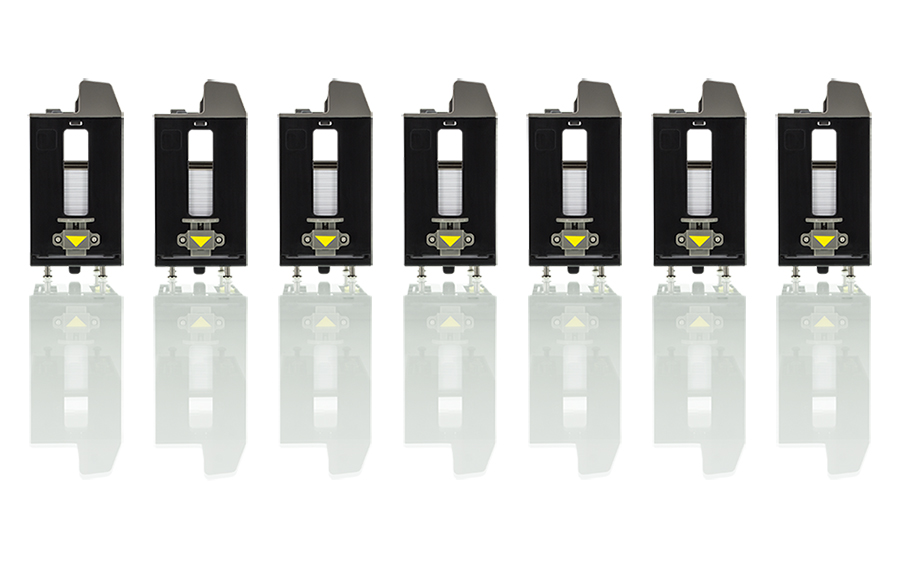

Increase card activation and usage while enhancing cardholder satisfaction and security with ExpressCard 3000. Its 7 card hoppers make it easy to securely, personalize a variety of cards in as little as 90 seconds.

Premier Production that Earns Top-of-Wallet

ExpressCard 3000 gives your customers the freedom to express themselves, with dual-sided printing, multi-colored tipping and indent printing.

Embossing is Accepted Globally

If the Internet is down or electronic payments aren't an option, embossed cards are accepted around the world.

Flexible Personalization

With ExpressCard 3000, you can offer flat printing, embossing, horizontal or landscape orientations; putting its multiple card hoppers to work for you.

Logical and Physical Security

ExpressCard 3000 delivers physical and logical security including hard mounting points, steel barrel lock and key, dual control passwords, device certificates, and MagnePrint reference capture.

Specifications

Physical Characteristics

Dimensions (L X W X H)

24.7 in. x 26.8 in. x 15.1 in.
(627 mm x 680 mm x 384 mm)

Physical Security

3/8" chassis anchor hole for desktop / counter mounting Ring-shaped security anchor

System Interface (W X H)

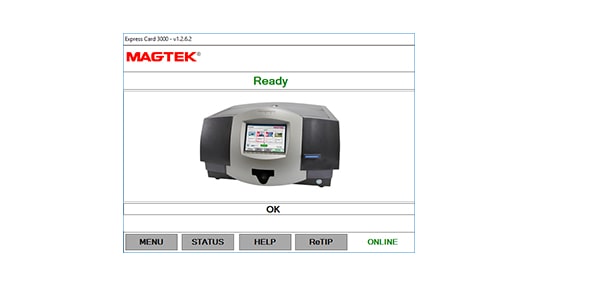

4.5 in. x 3.75 in. (114 mm x 95 mm) touchscreen

Operational Characteristics

Duty Cycle

50 cards per day (15,000 cards per year)

Electrical Characteristics

Power Requirements

100 VAC to 240 VAC at 50 or 60 Hz (Auto-adjusting)

Power Consumption

Sleep: 15 Watts
Idle: 60 Watts
Peak: 200 Watts

Data Ports

Ethernet 100 base-T (external)
USB 2.0 (internal)

Card Stock Characteristics
The EC3000 is designed to use card stock that meets the specifications listed ISO/IEC 7810 and IEC/ISO 7811-1 through 7811-6.

Card Stock Hopper Capacity

700 stock cards total (100 cards x 7 card stock hoppers)

Accepted Card Types

PVC, Optical memory cards with PVC finish Polyester cards with polished PVC finish (monochrome only)

Printing Characteristics

Printing Technology

Color / monochrome via dye-sublimation resin thermal transfer

Printing Resolution

Resolution 300 dpi
Up to 16.7 million colors / 256 shades per pixels

Embossing Characteristics
The EC3000 embosser module has a wide variety of configurable settings. MagTek sets each device's factory defaults to conform to ISO/IEC 7811 standard as described in this section.

Embosser Functions

Foil-tipped embossing Rear and / or front indent

Accepted Card Types

PVC, Optical memory cards with PVC finish Polyester cards with polished PVC finish (monochrome only)

Encoding Characteristics

Card Encoding

MagnePrint reference capture module
Chip card contact module per ISO 7816, EMV L1
3-track magnetic stripe encoder per ISO 7810 / 7811 (HiCo or LoCo cards)

Environmental Characteristics

Operating Temperature

65°F to 86° F (18°C to 30°C)

Operating Relative Humidity

20% to 80% without condensation

Storage Temperature

30° F to 104° F (-1.1°C to 40°C)

Storage Relative Humidity

90% or below without condensation

Acoustic Characteristics

Sound Level, Idle (Standby)

64 dBA at 1m

Sound Level, Embossing

70 dBA at 1m
