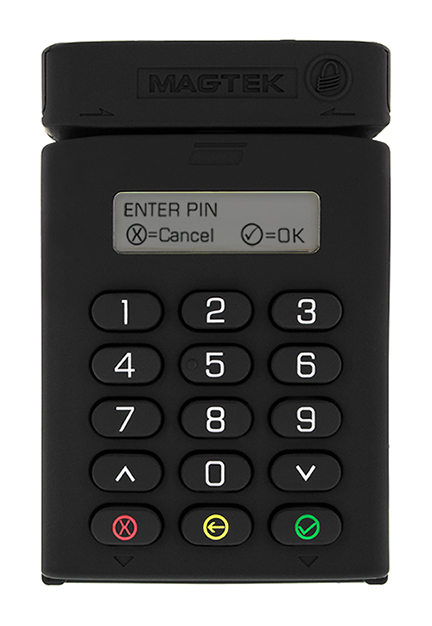

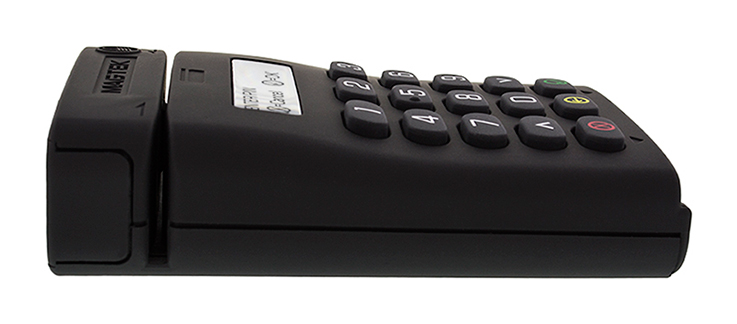

DynaPro Mini
Mobile EMV and Secure Magstripe PIN Entry Device
Connects to existing platforms
Connect to iOS, Android, and Windows operating systems.
Versatile connectivity options
- Connect via micro USB or go Bluetooth Low Energy.
- (“The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth
- SIG, Inc. and any use of such marks by MagTek is under license. Other trademarks
- and trade names are those of their respective owners.”)
Simplified data entry
The fifteen-key keypad consists of well-contoured buttons with tactile feedback for convenient entry of PINs or other data. Card swiping is a breeze in the smooth path.
Easy to follow administrative messages
Dot matrix LCD screen, 128 x 32 pixel array, 4 lines of up to 21 characters.
PCI PTS 3.x, SRED compliant mobile device
Industry standard 3DES encryption, DUKPT key management, and the MagneSafe® Security Architecture make it more secure than PCI requires. Secures data the moment it is entered.
Secured by the MagneSafe Security Architecture
MagneSafe® is a digital identification and authentication architecture that safeguards consumers and their personal data. Designed to exceed PCI regulations, MagneSafe leverages strong encryption, secure tokenization, counterfeit detection, tamper recognition, data relevance and integrity, and dynamic digital transaction signatures, which together validate and protect the entire transaction and each of its components.
Payment methods
|

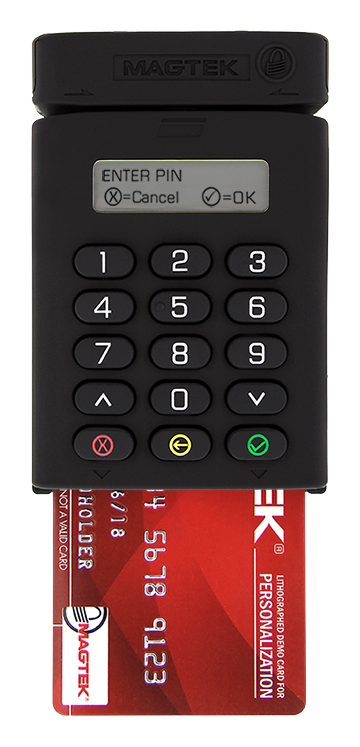

Magstripe secure card reader authenticator
Triple Track (TK1/2/3) Bidirectional read ISO 7810, 7811; AAMVA driver licenses |
YES
6 ips to 60 ips |
| EMV chip contact EMVCo L1 and L2 ISO/IEC 7816 | YES |
| EMV contactless EMVCo L1 and L2, EMV Level 1 /C-2/C-3/C-4/C-5 ISO/IEC 18092, ISO/IEC 14443 (Type A/B) | NA |
| NFC contactless / mobile wallets ISO/IEC 18092, ISO/IEC 14443 | (Type A, Type B) C-1/ C-6/C-7 D-PAS®, PayPass™, payWave®, ExpressPay®, Apple Pay® | NA |
| Signature Capture | NA |
Reliability and Operation
| MSR / SCRA swipes | 1 Million |
| EMV insertions | 500K |
| Operating System | Windows |
| CPU and memory | 32-bit secure processor
256 MBit flash memory |
| Status indicators | NA |
| Device Compatibility | Windows |
General
| Connection Method | Micro USB
Certain standard wireless |
| Wireless (Frequency 2.4 MHz) | Certain standard wireless |
| Interface | Compatible with USB 1.1 & USB 2.0
Certain standard wireless |
| Display | 128 x 32 pixels
4 lines up to 21 characters Dot matrix LCD screen |
| Secure PIN Pad | Rubber dome switches:
15 digits including 3 function keys, up/down arrows, ADA compliant |
| Optional Accessories | NA |
| Web services | Magensa Services |
Electrical
| Charging | Micro-USB |
| Battery | 1000 mAh nominal capacity
Lithium ion polymer rechargeable |
| Current and Power | USB Port Powered via Micro-USB jack 5VDC,
500 mA when connected to computer USB port |
Security and Certifications
| Compliance (FCC, CE, UL) | YES & PCI PTS 3.x & EMV Co
In SRED mode compliant for use in PCI-DSS and PCI P2PE environments Click here. |
| EMV L1 Contact | Click here. |
| EMV L2 Contact | Click here. |
| Data protection 3DES encryption;
DUKPT key management MagneSafe Security Architecture Unique, non-changeable device serial number |
YES |
| Tamper | Evident/Resistant/Responsive |
Mechanical
| Dimensions
L x W x H or L x W x D |
3.82 x 2.46 x 1.05 in
(97.0 x 62.5 x 26.6 mm) |
| Weight | 10.9 oz. (309 g) |
| Mount/Stabilizer | NA |
Environment
| Operating and storage temp | 32°F - 113°F (0°C -45°C) |
| Operating and storage humidity non-condensing | 10% - 90% |
