Payment Methods
Magstripe secure card reader authenticator
Triple Track (TK1/2/3); Bidirectional read; |
10 ips - 50 ips |
EMV chip contactEMVCo L1 And L2 |
Expired 8/2021 |
Contactless ReaderEMVCo Contactless L1, D-PAS®, PayPass™/MCL, payWave®, ExpressPay®, Mobile wallets including but not limited to Apple Pay®, Google Pay, Samsung Pay® |
Legacy L3 after 3/2021 |
Signature CaptureWith Dry Finger Tips |
YES |
Reliability and Operation
MSR / SCRA swipes |
1 Million |
EMV insertions |
500K |
Operating System Compatibility |
USB Hosts: Windows 7, Windows 8 and 8.1, Windows 10,
|
Status indicators |
NA |
General
Data Connections |
Micro-USB, implements USB 1.1 and USB 2.0
|
Display |
320x240 pixels
|
Secure PIN Pad |
Backlit Full-travel membrane pad providing tactile feedback; 10 digits, 2 data entry keys, 3 multi-purpose function keys; ADA central bump |
Magensa Web Services |
L3 Certified Gateway, Remote Services, Tokenization, Encryption, Authentication |
Electrical
Charging |
Micro-USB and charging cradle
|
Rechargeable Battery |
1700 mAh nominal (rated) Lithium polymer rechargeable for main power; Lithium coin cell for backup. |
Voltage Requirement |
5VDC when sourced from Micro-USB, charging cradle, or wall adapter |
Security and Certifications
MagneSafe Security Architecture |
MagTek V5 with Encryption, Tokenization, Authentication, Dynamic Data |
PCI PTS |
Expires 30 Apr 2024 |
Tamper |
Evident/Resistant/Responsive |
Mechanical
Dimensions
|
6.1 x 2.8 x 1.0 in. (155 x 71 x 25.4 mm) |
Weight |
802.11 wireless model: 8.84 oz. (250.5g), Bluetooth LE model: 8.73 oz. (247.5g) |
Mount/Stabilizer |
|
Environmental
Operating and Storage Temp |
32°F to 113°F (0°C to 45°C) |
Operating humidity non-condensing |
10% to 90% |

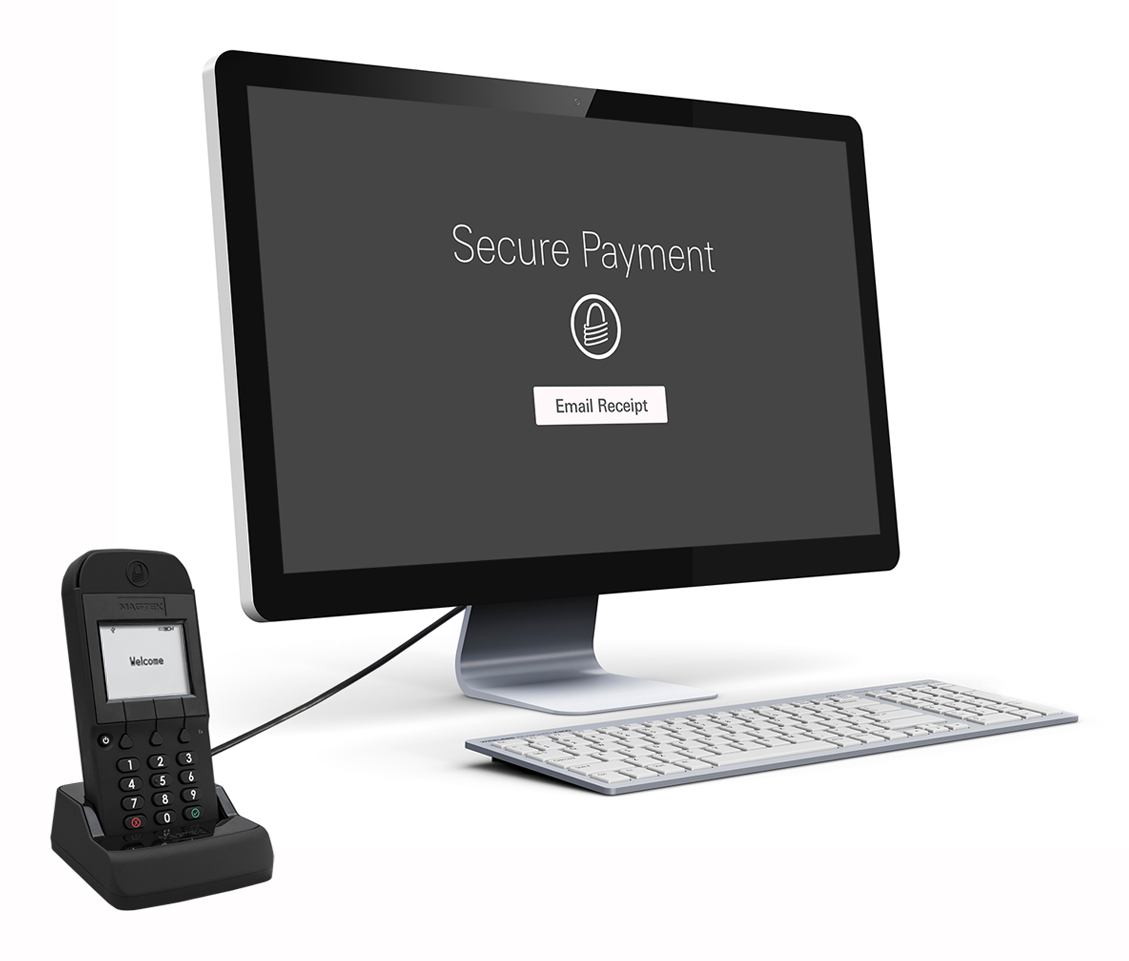

Optional Charging Cradle
