IPAD

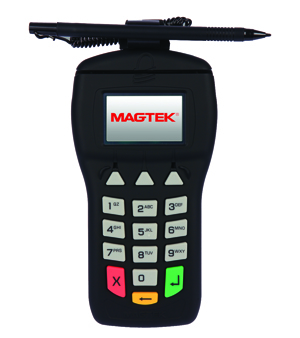

IPAD PIN Pad and Card Reader - REACHED SUNSET - please take a look at DynaPro Go
Windows environments where a PIN is needed
Windows XP or later (32-bit or 64-bit) Microsoft .NET Framework version 2.0.
Keyboard and HID emulation for simple integration
Works in environments that use USB HID and USB KB. No additional power is necessary.
Optional signature
Optional signature capture can be selected.
Sometimes all they need is a simple message
Keypad and graphics display output on a 128x64 pixel screen. Well defined magstripe swipe path.
PCI PED 2.x compliant
Industry standard 3DES encryption, DUKPT key management, and the MagneSafe Security Architecture make it more secure than PCI requires. Secures data the moment it is entered.
Secured by the MagneSafe Security Architecture
MagneSafe® is a digital identification and authentication architecture that safeguards consumers and their personal data. Designed to exceed PCI regulations, MagneSafe leverages strong encryption, secure tokenization, counterfeit detection, tamper recognition, data relevance and integrity, and dynamic digital transaction signatures, which together validate and protect the entire transaction and each of its components.
Standard Configurations
| Description | P/N |
| IPAD PINPAD PCI BLK RUBBER, 6FT | 30050200 |
General Information
| Interfaces | USB 2.0 (USB 1.1 compatible) |
| Display Type | Backlit, liquid crystal display (LCD) |
| Display Resolution | 128 x 64 dpi |
| Flash Memory | 256KB |
| Internal RAM memory | 128KB |
| Battery type | Lithium |
Electrical
| Power Input | USB Bus Powered |
| Voltage | 5VDC |
| Current | 100ma (500ma maximum) |
Mechanical
| Dimensions (L x W x H) | 7.5in x 3.5in x 1.5in (190.5mm x 88.9mm x 38.1mm) |
| Weight | 1 lb |
| Keypad | 16-key, includes 3 soft function keys associated with LCD |
| Cable Length (standard) | 6 ft (1.8 m) |
| Card Reader | 3 track encrypting IntelliHead reader with MagnePrint® |
| Connector Type | RJ12 (or RJ25) modular jack |
Environment
| Temperature | |
| Operating | 32 °F to 113 °F (0 °C to 45 °C) |
| Storage | 14 °F to 140 °F (-10 °C to 60 °C) |
| Humidity | |
| Operating | 10% to 90% non-condensing at 23°C |
| Storage | Up to 100% non-condensing |
| Altitude | |
| Operating | 0 to 10,000 ft (0 to 3048 m) |
| Storage | 0 to 50,000 ft (0 to 15240 m) |
