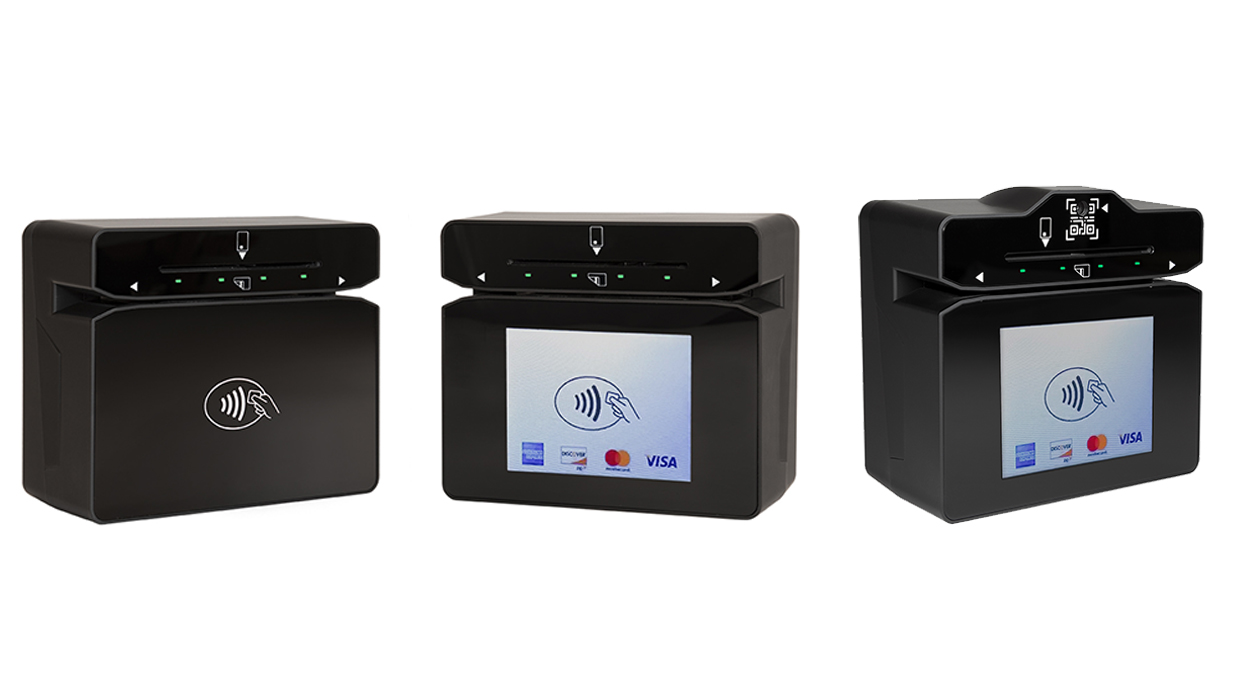

DynaFlex Kiosk Family
DynaFlex products deliver a wide variety of payment acceptance in a small form-factor. All DynaFlex products offer an integrated secure card reader authenticator for magnetic stripe cards, EMV chip cards (contact and contactless), and NFC enabled mobile wallets including Samsung Pay, Google Pay, and Apple Pay. DynaFlex Kiosk, DynaFlex Kiosk Pro, and DynaFlex Kiosk Pro BCR are built for easier integration into OEM solutions with a flat angled back. DynaFlex Kiosk products designated as "Pro" include a responsive touchscreen with support for Manual Entry and Signature Capture. DynaFlex Kiosk products designated as "BCR" read QR Codes and other 1D and 2D barcodes.
Versatile Payment Acceptance
- DynaFlex Kiosk products are ready to accept a variety of payment options for card-present, card-not-present, mobile wallets and QR Codes. DynaFlex Kiosk products have a smooth magnetic stripe swipe path, durable EMV chip contact insertion slot, accurate barcode scanner, responsive touchscreen, and fast EMV/NFC contactless tap pad.

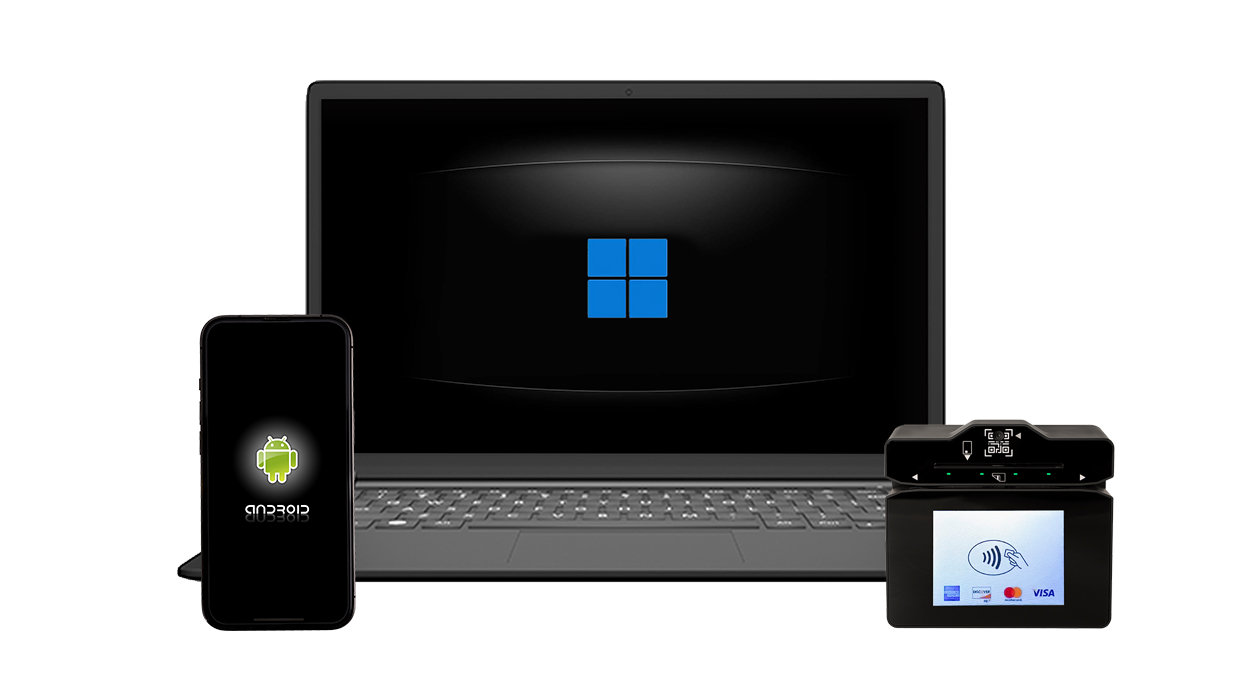

Leading Operating Systems Compatibility
DynaFlex Kiosk products are compatible with Android and Windows handheld and countertop devices for easier integration into leading payment applications.

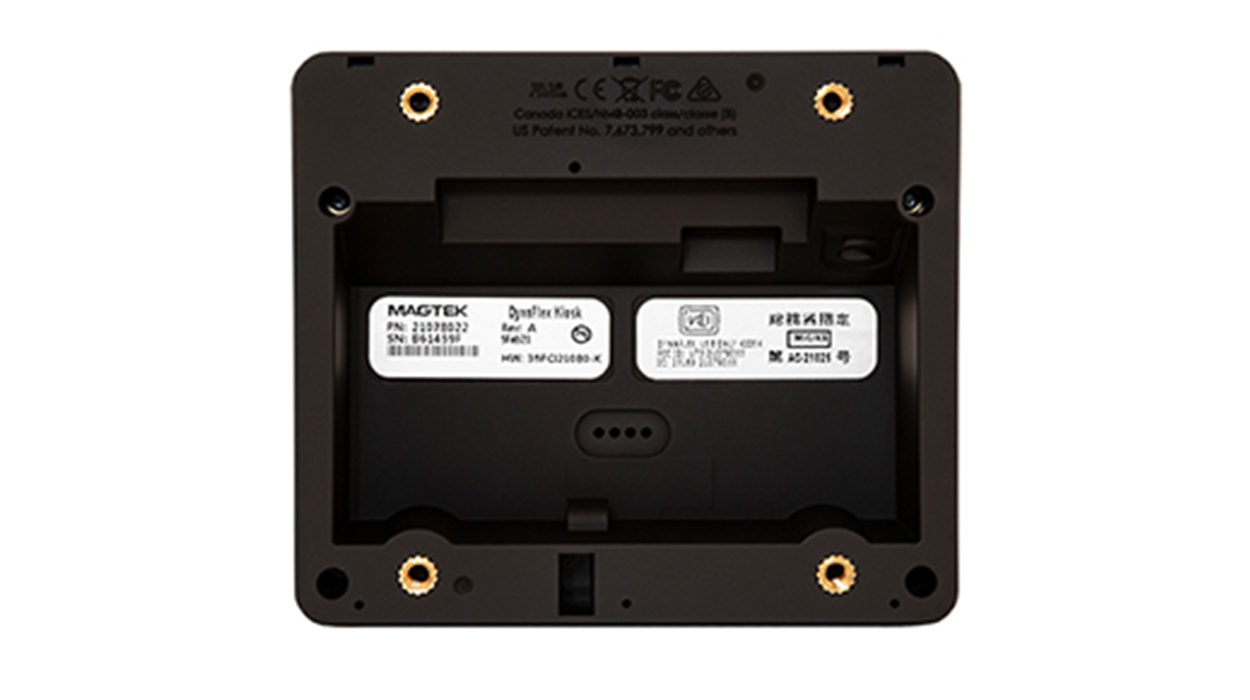

Mounting Made Easy
Built with a straight angle bottom, kiosk models have 4 threaded mounting holes for easier integration into unattended and self-service kiosks. Mount however it works best in your payment environment. DynaFlex Kiosk Products deliver the stability and performance you need.
Simplified Cable Management
- Route the cable in the desired direction, out the back, left, right, down into the countertop, or into the mounting compartment of a kiosk. Cable management made easy.
Simple Power and Connection
DynaFlex Kiosk Products connect via USB, using one of the most common connection and power sources available. When properly powered through its USB port, the device powers on automatically.
Secure Transactions
DynaFlex Kiosk Products deliver PCI PTS POI Secure Reading and Exchange of Data (SRED), making all models suitable for PCI-P2PE Solutions.
Built for Reliability
- With one million swipes, 500K insertions, and able to operate in temperatures between 32’ to 113’F, DynaFlex Kiosk products are a great solution for unattended indoor self-service payments.
Go “Pro” for Touchscreen and “BCR” for Barcode Reading
- DynaFlex Kiosk products deliver a large, clear area for contactless transactions, whether you are accepting EMV contactless cards or NFC mobile wallet payments. DynaFlex Kiosk products designated as "Pro" include a responsive touchscreen with support for Manual Entry and Signature Capture. DynaFlex Kiosk products designated as "BCR" read QR Codes and other 1D and 2D barcodes.
MAGENSA SERVICES | Solutions as a Service
Couple DynaFlex Kiosk Products with Magensa Web Services for faster development, reduced PCI scope, enhanced customer experience, gift card and loyalty card processing, remote services, tokenization of card data for recurring payments, invoicing, and certified access to major processors through the Magensa Payment Protection Gateway (MPPG).
APPLICATIONS | Payment Acceptance
- DynaFlex Kiosk products combined with Magensa Web Services deliver payment acceptance versatility.
Retail Environments
- DynaFlex Kiosk products deliver more for unattended self-service retail solutions including vending, quick service restaurants, drive-thru, and anywhere else you need to accept payments.
Banking Environments
- DynaFlex Kiosk products are ready to work with your application for ID verification or as a payment offering for your Merchant Services. Add signature capture, insert, tap, swipe, and QR Code reading, to your teller-line, drive-thru, roaming teller, or at pop-up events with DynaFlex Kiosk products.
Vending and Kiosk Environments
Enable customers with self-service, streamline payments, speed customer check-out, enhance the customer experience, and reduce PCI scope.
MagneSafe Security Architecture
DynaFlex Kiosk Products are built on the foundation of the MagneSafe® Security Architecture. DynaFlex Kiosk Products support triple DEA or AES encryption, both with DUKPT key management, tokenization, and authentication. The magnetic stripe secure card reader authenticator uses MagnePrint® card authentication to secure cardholder data. DynaFlex is ready with device/host authentication, unique, non-changeable serial numbers, and time bound session IDs to defend against rogue devices entering the payment environment.
Payment Methods
Magstripe secure card reader authenticator
Triple Track (TK1/2/3); Bidirectional read; ISO 7811 |
YES
6 ips to 60 ips |
EMV chip contact
EMVCo L1 and L2 ISO/IEC 7816 |
YES |
EMV contactless
EMVCo L1 and L2 Contactless Reader D-PAS, PayPass/MCL, payWave, Expresspay Mobile wallets including but not limited to Google Play, Samsung Pay, Apple Pay |
YES |
NFC contactless / mobile wallets
ISO/IEC 18092, ISO/IEC 14443 (Type A/B) D-PAS, PayPass/MCL, payWave, Expresspay Mobile wallets including but not limited to Google Play, Samsung Pay, Apple Pay |
YES |
Barcode / BCR models only
QR Code (color encoded, logo-based), Linear Barcodes, UPC-A, UPC-E, Aztec, EAN-13, Code 39, Code 128, PDF417/ Data Matrix, etc. |
BCR Models Only |
Reliability and Operation
MSR / SCRA swipes | 1 Million |
EMV insertions | 500K |
Compatible Operating System | USB Hosts: Windows 10, Android 4.4.2 and above |
Touchscreen display (DynaFlex Pro models only) |
2.3 in. x 1.7 in. (57.6mm x 43.2mm)
320x240 (RGB) Dots |
Status indicators | 4 LED, auditory beep |
General
Connection / Interfaces |
USB-C (USB HID 2.0) |
Magensa Web services | YES |
Electrical
Charging | NA |
Rechargeable Battery for Bluetooth LE and 802.11 wireless operations | NA |
Current and Power | Power through USB |
Security and Certifications
Compliance ((FCC, CE, UL, UKCA) | YES |
Certification |
PCI PTS POI v5.1 SCR
EMVCo Cert |
MagneSafe Security Architecture | YES |
Encryption | TDEA/DUKPT |
Tamper | Responsive |
Mechanical
Dimensions
W x L x H |
DynaFlex and DynaFlex Pro: 4.0 x 3.5 x 1.9 in.(101.6 x 88.9 x 48.3mm) DynaFlex Kiosk/DynaFlex Pro Kiosk: 4.1 x 3.5 x 1.9 in.(103.3 x 90.0 x 48.3mm) DynaFlex BCR models 4.07 x 3.74 x 1.91 in (103.3 x 95.1 x 48.5mm) |
Mount/Stabilizer
|
4 threaded mounting holes![]() ![]() |
Environmental
Storage temp | 14°F to 140°F (-10°C to 60°C) |
Operating temp | 32°F to 113°F (0°C to 45°C) |
Operating & Storage humidity non-condensing | 5% to 90% non-condensing |
